Product Name:
ZAP70-pY319
Product Number:
ab-pk862
Target Full Name: Zeta-chain (TCR) associated protein-tyrosine kinase, 70 kDa
Target Alias: SRK; Syk-related tyrosine kinase; ZA70; ZAP-70
Product Type Specific: ZAP70 protein kinase phosphosite-specific antibody
Antibody Code: PK862
Antibody Target Type: Phosphosite-specific
Antibody Phosphosite: Y319
Protein UniProt: P43403
Protein SigNET: ZAP70
Antibody Type: Polyclonal
Antibody Host Species: Rabbit
Antibody Immunogen Source: Human ZAP70 sequence peptide Cat. No.: PE-04ALM99
Antibody Immunogen Sequence: ESP(pY)SDP(bA)C
Antibody Immunogen Description: Corresponds to amino acid residues E316 to P322; in the region between the SH2 and kinase catalytic domains. One of the major in vivo sites of phosphorylation in ZAP70.Y319 phosphorylation stimulates phosphotransferase activity and regulates intracellular location, transcription and molecular association, including inducing interaction with Lck and PLCG1. This is one of the major in vivo phosphorylation sites in ZAP70 (≥263 mass spectrometry reports recorded in PhosphoSitePlus). ZAP70 is known to be phosphorylated at this site in vitro by Abl1, Lck, and ZAP70.
Production Method: The immunizing peptide was produced by solid phase synthesis on a multipep peptide synthesizer and purified by reverse-phase hplc chromatography. Purity was assessed by analytical hplc and the amino acid sequence confirmed by mass spectrometry analysis. This peptide was coupled to KLH prior to immunization into rabbits. New Zealand White rabbits were subcutaneously injected with KLH-coupled immunizing peptide every 4 weeks for 4 months. The sera from these animals was applied onto an agarose column to which the immunogen peptide was thio-linked. Antibody was eluted from the column with 0.1 M glycine, pH 2.5. Subsequently, the antibody solution was neutralized to pH 7.0 with saturated Tris.This antibody was also subject to negative purification over phosphotyrosine-agarose.
Antibody Modification: Unconjugated. Contact KInexus if you are interest in having the antibody biotinylated or coupled with fluorescent dyes.
Antibody Concentration: 1 mg/ml
Storage Buffer: Phosphate buffered saline pH 7.4, 0.05% Thimerasol
Storage Conditions: For long term storage, keep frozen at -40°C or lower. Stock solution can be kept at +4°C for more than 3 months. Avoid repeated freeze-thaw cycles.
Product Use: Western blotting | Antibody microarray
Antibody Dilution Recommended: 2 µg/ml for immunoblotting

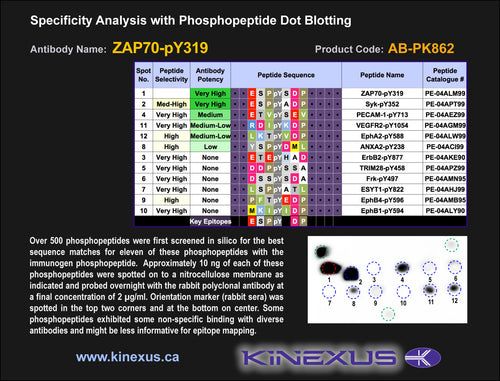

Antibody Potency: Strong immunoreactivity with immunogen peptide on dot blots.
Antibody Species Reactivity: This antibody detects the target phosphoprotein in the following species due to conservation of amino acid sequence: Human | Chimpanzee | Rhesus Macaque | Mouse.

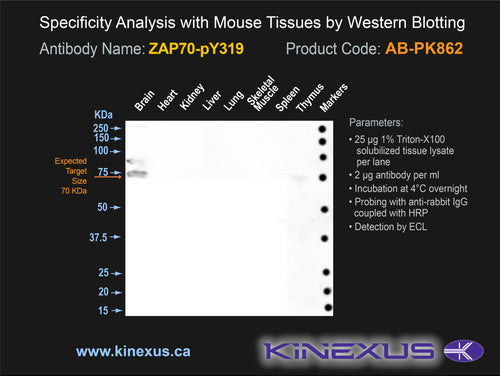

Antibody Positive Control: The observed molecular mass of the processed target protein on SDS-PAGE gels is reported to be around 65-75 kDa.

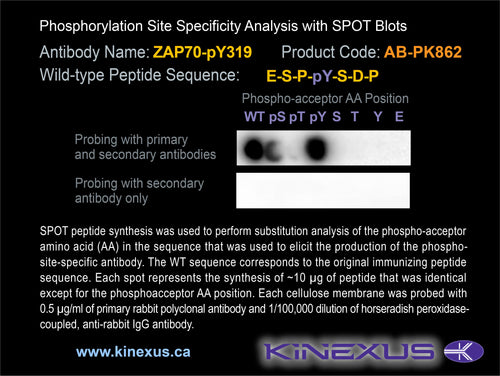

Antibody Specificity: High-very high

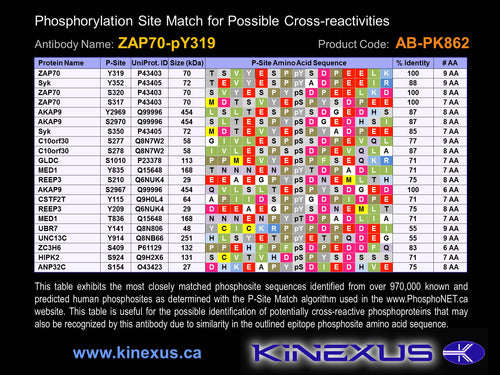

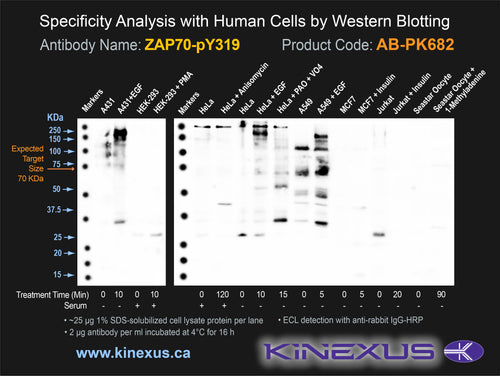

Antibody Cross Reactivity: Almost no significant cross-reactivities detected in A431 cells, except EGF increases 33 kDa cross-reactive protein signal. A 32 kDa cross-reactive protein is also increased during meiosis in maturing sea star oocytes.
Related Product 1: ZAP70 (316-322) pY319 antibody blocking peptide (Cat. No.: PE-04ALM99)
Related Product 2: ZAP70-pY248 phosphosite-specific antibody (Cat. No.: AB-PK860)
Related Product 3: ZAP70-pY292 phosphosite-specific antibody (Cat. No.: AB-PK861)
Related Product 4: ZAP70-pY492+pY493 phosphosite-specific antibody (Cat. No.: AB-PK863)
Scientific Background: ZAP70 (SRK) is a protein-tyrosine kinase of the TK group and Syk family. It is highly expressed in heart, lymph nodes, pancreas, parathyroid gland, spleen, stomach, thymus and tonsils. It plays an essential role in mediating the adaptive immune response. ZAP70 can control adhesion, motility, and cytokine production in T cells, and natural killer (NK) cell functions as well as the development of thymocytes and primary B-cells. ZAP70 is activated by phosphorylation at Y319, Y474 and Y493, and inhibited by phosphorylation at Y492, which functions as a docking site for Cbl. Phosphorylation of Y319 also increases PLC-g1+ and Ras activation, and it is an Lck binding site. Phosphorylation of Y315 of ZAP70 induces association with CrkII. Phosphorylation of S520 primes ZAP70 binding to the plasma membrane. ZAP70 mediates T-cell antigen receptor (TCR) signalling. ZAP70 is phosphorylated and activated by the doubly-phosphorylated TCR component CD247/CD3Z at the plasma membrane. Ligation of the TCR/CD3 receptor in Jurkat T-cells induces complexes which contain ZAP70. TCR zeta chains are initially phosphorylated by Lck, which leads to the recruitment of ZAP70 via its SH2 domain. ZAP70 in turn phosphorylates the zeta-chain dimer in the TCR/CD3-phosphoprotein complex. ZAP70 may be an oncoprotein (OP). Gain-of-function mutations in the ZAP70 gene have been observed in several human cancer types, including neck squamous cell carcinomas, Malt lymphomas, acute lymphoblastic leukemias (ALL) and in chronic lymphocytic leukemias (CLL). ZAP70 has also been linked with severe combined immunodeficiency, chronic arthritis, and selective T-cell defects. This description may include information annotated by UniProt and/or Google AI.
